  • CG2-150D Heavy Thickness Profiling gas cutter
  • Model Name:

    CG2-150D Heavy Thickness Profiling gas cutter

  • Product Description
  • “CG2-150D”Heavy Thickness profiling gas cutter is a kind of efficient and economic product. It is designed well and made of A-alloy. It can cut many shapes of pieces according to sample plate. The accuracy of cutting surface is good and the quality is high. The body is very small. So, it not only suits for company, but also suits for outdoor.

Follow Us:

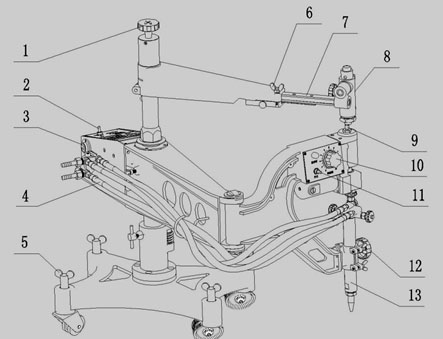

1.Lift wheel of arm :Release the screw of arm and adjust the wheel to make the arm unit assembly rise or fall.



7.Cross moving bar:Measuring scale is set on the fracture of cross moving bar. You can adjust the sample plate horizontally according to scale.



2.Power switch





3.Outlet



8.Frame of sample plate: To fix the sample plate and adjust the height of sample plate.



4.Hoses: There are four hoses: preheating, cutting, fuel gas and feeding gas for pressure switch.

5. Screw at the bottom: Make the machine horizontal on steel plate.

6. Locking screw of arm cross moving bar: If the position of sample plate is settled, you can fix the cross moving bar on the arm with locking screw.





9.Magnetic head



10.Speed regulating knob:Increase the speed if you revolve it along “0” to “10”.

11.Direction regulating switch: To change the rotary direction of magnetic head.











12.Lifting hand wheel of torch



13.Torch



Specifications

1.Weight(Body)

:58.5kg

2. Machine dimension

:1190×335×1000mm

3.Speed control

:SCR

4.Power source

:220V 50HZ

5. Cutting speed

:50~750/mm/min

6. Cutting thickness

:8~200mm

7. The diameter of cutting circle.

:ø20~ø600mm

8. Length of cutting line.

:1200mm

9. Size of cutting rectangle.

:400mm×900mm, 450mm×750mm

10.Motor

: 55/ZYT DC110V24W   3600r/min

 Contents of package

1. Main body

1set

2. Standard torch unit assemblage

1set

3. Tip (acetylene )

3pcs

4. Power wire

1pc

5. Specification sheets and certificate of qualification

1 pc each

6. Gas-in connector

1set

Standard accessory

1.balance bar

2pcs

2.Heavy punch

1set

3.Sample plate of circle

1set
